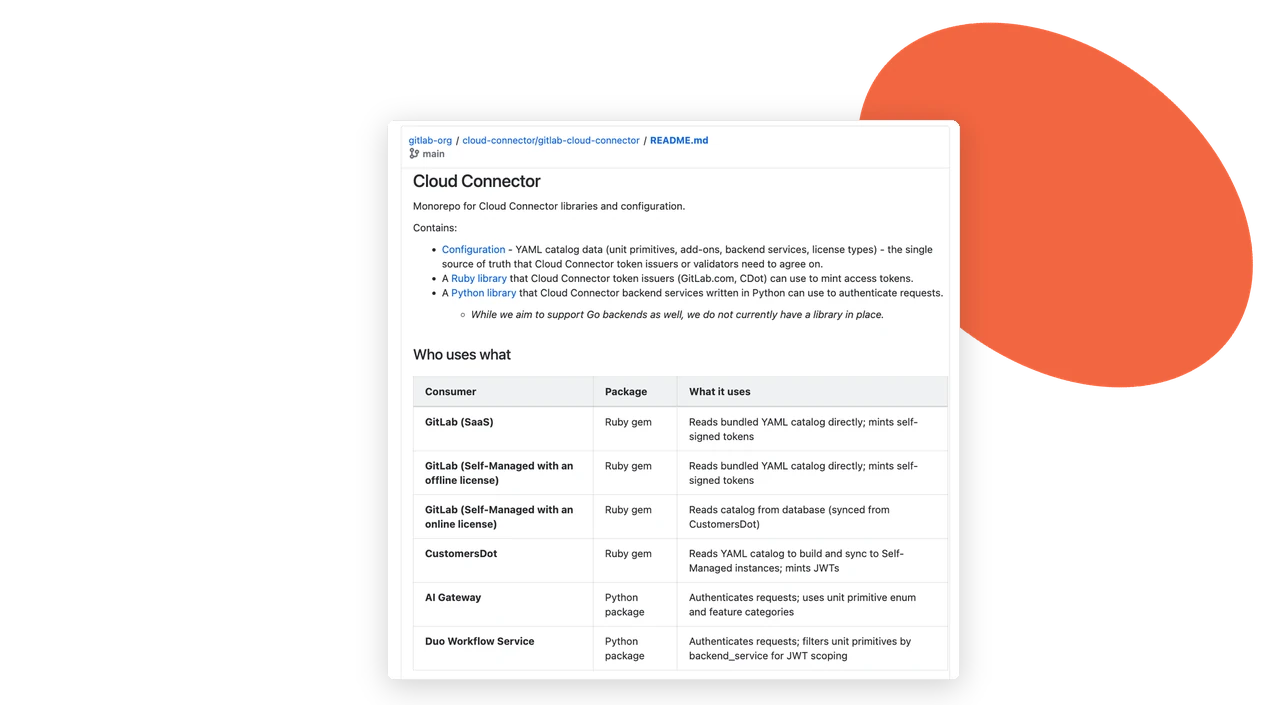

Include from GitLab™ to Confluence (Markdown, AsciiDoc)

After the 2025-01-17 you get a An error occurred: The redirect URI included is not valid when trying to authenticate.

On 2025-01-17 the URL of the app changed. You have to update the GitLab registration:

1. In GitLab, navigate to the registration of the Include GitLab for Confluence
2. Edit the current registration
3. Update the Redirect URI to https://include-gitlab-for-confluence.mibexsoftware.com/oauth-callback

Alternative, you can recreate the registration.

Yes, you can export Git assets (including files and other content) as part of a PDF or Word export of your Confluence page.Pagination

Advanced links such as {asciidoc-dir}/../../shared/versions/stack/{source_branch}.adoc are currently not supported and we display in the included file.

If images in your Markdown or AsciiDoc files aren’t rendering, it’s often due to the use of relative paths that can’t be resolved in the current context.

To ensure images are rendered correctly:

• Use absolute paths relative to the repository root when possible.
• Make sure the image file exists and is accessible at the specified path.

AsciiDoc

=== Picture 1 Block
image::/images/Example.png[]
=== Picture 2 Inline
image:/images/Example.png[]

Markdown

![Alt text](/src/images/image.png)

You can add custom sizes to images in Markdown using HTML. While Markdown is great for formatted text, it doesn’t natively support resizing images. But with the img tag, you can easily control image dimensions.

For example:

.image-container img {
  width: 200px;
  height: auto;
}

Yes, you can customize the layout for PDF exports, including the image size, by modifying the Confluence PDF stylesheet. For example, adding the following CSS rule to the PDF stylesheet will ensure that the images in the exported file are displayed at the same size:

img { width: 85%; height: 85%; }

For more details on customizing PDF exports, you can refer to the official Atlassian documentation: Customize Exports to PDF.Pagination

Branches with slashes in their name (eg bugfix/issue-123, feature/abc) are not supported at the moment.

As a workaround, replace the slash of the branch name in the URL with %2F, for example, the bugfix/issue-123 branch URL https://gitlab.com/your-repo/test-files/-/blob/bugfix/issue-123/src/test.txt?ref_type=heads to https://gitlab.com/your-repo/test-files/-/blob/bugfix%2Fissue-123/src/test.txt?ref_type=heads

Let us know your use case here if you require support for slashes in branch names.

You can use !include <C4/C4_Container> for including the C4-PlantUML library.

Example:

@startuml
!include <C4/C4_Container>
Person(personAlias, "Label", "Optional Description")
Container(containerAlias, "Label", "Technology", "Optional Description")
System(systemAlias, "Label", "Optional Description")
System_Ext(extSystemAlias, "Label", "Optional Description")
Rel(personAlias, containerAlias, "Label", "Optional Technology")
Rel_U(systemAlias, extSystemAlias, "Label", "Optional Technology")
@enduml

Reference: https://plantuml.com/stdlib#062f75176513a666

To use the official Standard Library for PlantUML, you can use the following syntax in the PlantUML file:

!include <awslib/AWSCommon>
!include <awslib/Groups/all>
!include <awslib/ApplicationIntegration/MQ>
!include <awslib/Database/DocumentDB>
!include <awslib/Database/RDS>
!include <awslib/Containers/Containers>
!include <awslib/Storage/SimpleStorageService>
!include <awslib/Storage/SimpleStorageServiceGlacier>
!include <awslib/ApplicationIntegration/APIGateway>
!include <awslib/SecurityIdentityCompliance/Cognito>
!include <awslib/Database/DocumentDB>
!include <awslib/Database/RDS>
!include <awslib/Compute/Lambda>
!include <awslib/InternetOfThings/IoTThingGeneric>

When using a Scroll Viewport with images hosted in Git, relative image paths can trigger an authentication request, preventing the images from loading properly.

To resolve this, use a full URL that references the raw file URL directly. This allows Scroll Viewport to fetch the image without requiring authentication.

⚠️ Note: This approach only works if the repository is publicly accessible. If the repository is private, authentication may still be required, and the images will not be visible.

Example Usage in AsciiDoc:

image::https://gitlab.com/yourInstance/-/raw/master/image.png[title="image"]

How to Get the Raw File URL?

To obtain the raw URL of an image file in GitLab Cloud:

1. Navigate to the image file in your repository.
2. Right-click on the image and choose Copy Image Address
